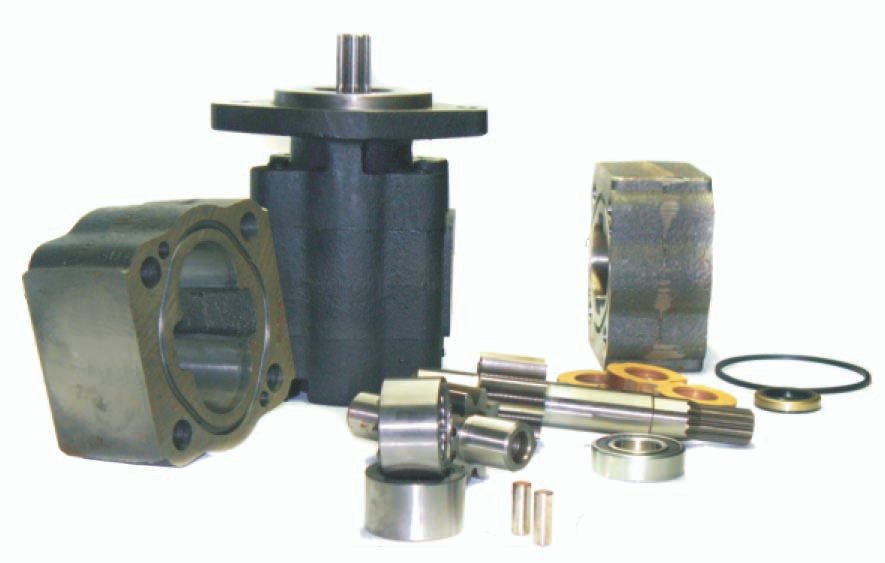

Roller Bearing Gear Pump P30/31, P50/51, P75/76 series
working pressures to 2500 psi Speeds up to 2400 rpm Robust cast iron construction A wide selection of standard shaft and mounting configuration Multiple sections are available Optional priority, two-speed, and unloader valves are available Single and Multiple pump/motor, Flow Divider, Piggyback and Winch Motor configurations are available
Rotary Flow Divider Intensifier FD30, FD50, FD75 series
Rotary Flow Divider Intensifier FD30, FD50, FD75 series This eguipment divides a single oil flow input into several output streams, in direct proportion to the gear widths used. The Rotary Flow Divider also acts as an intensifier, transferring energy from total oil flow to that portion being used.
Multiple Section Pump
Available in up to five pump sections, providing five separate flows from a single output drive. The individual flows can be tailored to suit most requirements over a range of speeds.
Bush Bearing Pumps P315, P330, P350, P360 series
Working pressures to 3500 psi Patented interlocking body design Bronze thrust plates Tandem, triple and cross-frame pumps available Wide range of integral valves for power steering, power brakes, fan drives and implement hydraulics Reduced system noise levels compared to earlier models and competitors’ pumps High power through-drive capability
Fixed Displacement Gear Pumps and Motors
Commercial’s extensive range, with displacements from 10.6 to 249.9 cm³/r and working pressure to 3500 psi, can handle the most difficult and heavy work loads,efficiently and effectively. A wide sellection if standart shaft and mounting configurations is available to suit most drive requirements.
Sectional Directional Control Valve DVA 20/35
Maximum flow rate 40 GPM Maximum operating pressure 2500 psi (172 bar) Paralel and series circuit
Sectional Directional Control Valve DVA 20/35
Maximum flow rate 70 GPM Maximum operating pressure 3500 psi (241 bar) Paralel and series circuit
Sectional Directional Control Valve DVG 20/35
Previous Next Sectional Directional Control Valve DVG 20/35 Maximum flow rate 70 GPM Maximum operating pressure 3500 psi (241 bar) Paralel and series circuit CONTACT US Head Office Kompleks Pergudangan Kencana Trosobo Blok.B.No.6 Jl. Raya Sidorejo No.58-KM 23.5, Tanjung, Trosobo, Taman Kabupaten Sidoarjo, Jawa Timur 61262 Telp.031 99897862 sales@jayatimur.com sales_admin@jayatimur.com +62-812 3127 2829 +62-856 5527 […]
Sectional Directional Control Valve DVG 20/35 with selenoid operated
Maximum flow rate 40 GPM / 70 GPM Maximum operating pressure 2500 psi (172 bar) Paralel and series circuit
AP 05 Series
model type AP0.5/0.25, AP0.5/0.5,AP0.5/0.75,AP0.5/0.9, AP0.5/1.2,AP0.5/1.6, APR0.5/0.25, APR0.5/0.5, APR0.5/0.75, APR0.5/0.9, APR0.5/1.2, APR0.5/1.6 Flow rate up to 1,6 cm³/r. working pressure up to 3300 psi (230 bar)
